Open Quantum Dynamics of a Spin Chain

This documentation describes how to simulate the open quantum dynamics of a spin chain using the Lindbladian formalism. The simulation supports both classical and quantum computation backends and showcases comparison plots between different solver strategies.

System Setup

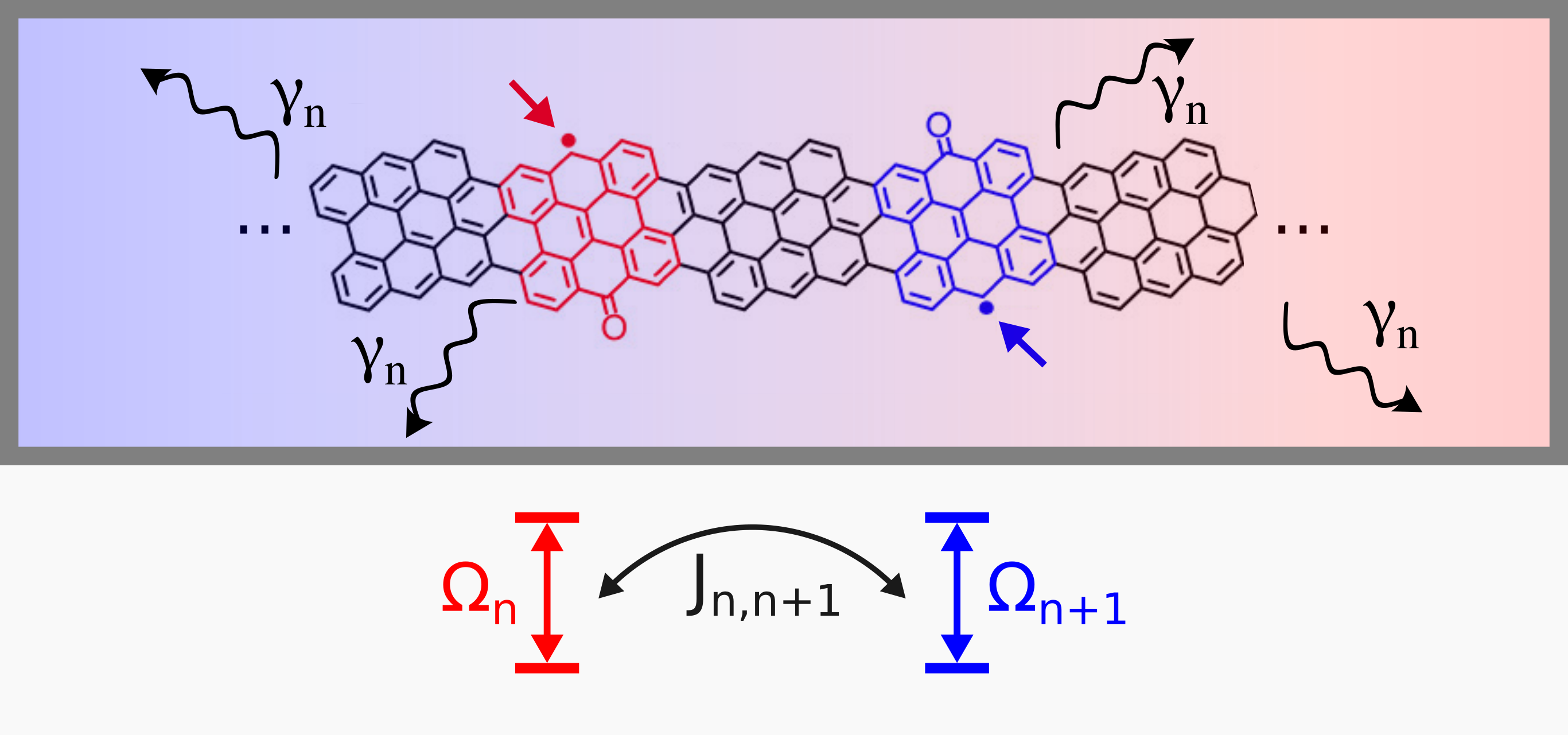

We begin by specifying the system Hamiltonian and initial state for a chain of $n = 3$ spins, with the form

\[ H = \sum_{n=0}^{N-1} \Omega_{n} \sigma_{n}^{z} - \frac{1}{2} \sum_{n=0}^{N-2} ( J_{n,n+1}^{x} \sigma_{n}^{x} \sigma_{n+1}^{x} + J_{n,n+1}^{y} \sigma_{n}^{y} \sigma_{n+1}^{y} + J_{n,n+1}^{z} \sigma_{n}^{z} \sigma_{n+1}^{z} ) \]

The Hamiltonian is defined using a Pauli string representation and includes local $Z$-field terms and $XX$, $YY$, and $ZZ$ couplings, with cofficients given according to the table:

Parameter	$ n = 0 $	$ n \neq 0 $
$ \Omega_n $	0.65	1.0
$ J_{n,n+1}^{x} $	0.75	1.0
$ J_{n,n+1}^{y} $	0.75	1.0
$ J_{n,n+1}^{z} $	0.0	0.0

import numpy as np
import matplotlib.pyplot as plt

import QFlux.open_systems.params as pa
from QFlux.open_systems.numerical_methods import DynamicsOS
from QFlux.open_systems.quantum_simulation import QubitDynamicsOS
import QFlux.open_systems.trans_basis as tb


#============set the Hamiltonian and initial state
#the system Hamiltonian parameter
nsite = 3 #this states how many spins in the simulation
Nsys_sc = 2**nsite #this is the dimension of the Hilbert space
Omegai_list = [0.65, 1.0, 1.0]
Jix_list = [0.75, 1.0]
Jiy_list = [0.75, 1.0]
Jiz_list = [0.0, 0.0]

#Hamiltonian in pauli string basis
H_pauli_str = {'ZII':Omegai_list[0], 'IZI':Omegai_list[1], 'IIZ':Omegai_list[2], \
               'XXI':-0.5*Jix_list[0], 'IXX':-0.5*Jix_list[1], \
               'YYI':-0.5*Jiy_list[0], 'IYY':-0.5*Jiy_list[1], \
               'ZZI':-0.5*Jiz_list[0], 'IZZ':-0.5*Jiz_list[1]   }

#system hamiltonian
Hsys = tb.pauli_to_ham(H_pauli_str, 3)

The initial state is constructed as a product state $|\uparrow\downarrow\downarrow\cdots\rangle$, and its corresponding density matrix is stored in rho0_sc. The time evolution will be simulated over a grid defined in time_arr.

#set up the initial state at [up,down,down...]
init_state = pa.spin_up
for i in range(nsite-1):
  init_state = np.kron(init_state,pa.spin_down)

#set up the initial density matrix according to initial state
rho0_sc = np.zeros((Nsys_sc,Nsys_sc),dtype=np.complex128)
rho0_sc += np.outer(init_state,init_state.conj())

#time array for simulation
time_arr = np.linspace(0, (250 - 1) * 0.1, 250)

Collapse Operators (Lindblad Dissipators)

Open quantum dynamics are modeled using the Lindblad master equation.

\[ \dot{\rho}(t) = -i [H, \rho(t)] + \frac{1}{2} \sum_{m=1}^{2} \sum_{n=0}^{N-1} \gamma_{m,n} \left[ 2 L_{m,n} \rho(t) L_{m,n}^{\dagger} - \rho(t) L_{m,n}^{\dagger} L_{m,n} - L_{m,n}^{\dagger} L_{m,n} \rho(t) \right] \]

Here we construct collapse operators $L_i$ representing two types of dissipation:

Type 1: Amplitude damping via $\sigma^-$
Type 2: Dephasing via $\sigma^+ \sigma^-$

These are weighted by decay rates $\Gamma_1$ and $\Gamma_2$ per site.

L_sc = []
#The lindblad damping rate
Gamma1 = [0.016]*nsite
Gamma2 = [0.0523]*nsite

for isite in range(nsite):
  #Lindbladian for type 1
  res = 1.0
  for j in range(nsite):
    if(j==isite):
      res = np.kron(res,pa.sigmam)*np.sqrt(Gamma1[isite])
    else:
      res = np.kron(res,pa.I)
  L_sc.append(res)

  #Lindbladian for type 2
  res = 1.0
  for j in range(nsite):
    if(j==isite):
      res = np.kron(res,pa.sigmap@pa.sigmam)*np.sqrt(Gamma2[isite])
    else:
      res = np.kron(res,pa.I)
  L_sc.append(res)

Each collapse operator is built as a Kronecker product over the sites, selectively applying the operator at the target site and identities elsewhere.

Classical Simulation

We now instantiate the system using both pure and open dynamics objects:

DynamicsOS for simulating Liouville and Lindblad evolution
Propagation methods:
propagate_qt: Uses QuTiP for integration
propagate_matrix_exp: Uses matrix exponentials

#=============instantiation
spin_chain_puresys =  DynamicsOS(Nsys=Nsys_sc, Hsys=Hsys, rho0=rho0_sc)
spin_chain_opensys =  DynamicsOS(Nsys=Nsys_sc, Hsys=Hsys, rho0=rho0_sc, c_ops = L_sc)

#=============propagation
# QuTiP Propagation for the pure system Liouville equation (for comparison)
result_qutip_Liouv = spin_chain_puresys.propagate_qt(time_arr=time_arr, observable=rho0_sc)

#matrix exponential propagation
result_matrix_exp = spin_chain_opensys.propagate_matrix_exp(time_arr=time_arr, observable=rho0_sc)

# QuTiP Propagation for the Lindblad equation
result_qutip_Lindblad = spin_chain_opensys.propagate_qt(time_arr=time_arr, observable=rho0_sc)

As_matrix_exp = np.sqrt(result_matrix_exp.expect[:])
As_qutip = np.sqrt(result_qutip_Lindblad[0][:])
As_qutip_liouv = np.sqrt(result_qutip_Liouv[0][:])

The results As_matrix_exp, As_qutip, and As_qutip_liouv represent expectation values (e.g., fidelity or survival amplitude) computed using each method.

Plotting Classical Results

We visualize the classical simulations by plotting the observable $A_s(t) = \sqrt{\langle \rho_0 | \rho(t) \rangle}$.

plt.figure(figsize=(6,2))
plt.plot(time_arr,As_matrix_exp,'b-', label="Matrix Exponential")
plt.plot(time_arr,As_qutip,'ko',markersize=4,markevery=4,label="QuTiP_Lindblad")
plt.plot(time_arr,As_qutip_liouv,'r-',label="Pure System")
plt.xlabel('time',fontsize=15)
plt.ylabel('$A_s$(t)',fontsize=15)
plt.legend(loc = 'upper right')

The comparison between matrix exponential, QuTiP Lindblad, and pure unitary evolution offers a benchmark for accuracy and computational cost.

Classical device simulation of open quantum dynamics of a three-site spin chain comparing the closed system, and the open system simulated with both Qutip and Matrix exponentiation

Quantum Simulation

A quantum simulation backend is invoked using the QubitDynamicsOS class. This assumes density matrix simulation via vectorization and allows control over measurement configuration and shot noise.

qspin_chain = QubitDynamicsOS(rep='Density',Nsys=Nsys_sc, Hsys=Hsys, rho0=rho0_sc, c_ops = L_sc)
qspin_chain.set_count_str(['0011011'])

res_qc_1k = qspin_chain.qc_simulation_vecdens(time_arr,shots=1000)
res_qc_1w = qspin_chain.qc_simulation_vecdens(time_arr,shots=10000)

As_qc_1k = np.sqrt(res_qc_1k)
As_qc_1w = np.sqrt(res_qc_1w)

The set_count_str method defines which measurement outcomes to track, and qc_simulation_vecdens performs the evolution using a quantum processor or simulator.

Plotting Quantum Results

We compare quantum results (with different shot counts) against the classical QuTiP benchmark. Increasing shot count reduces statistical noise.

plt.figure(figsize=(6,2))
plt.plot(time_arr,As_qc_1k[:],'r-',label=f"quantum,counts={1000}")
plt.plot(time_arr,As_qc_1w[:],'b-',label=f"quantum,counts={10000}")
plt.plot(time_arr,As_qutip,'ko',markersize=4,markevery=4,label="QuTiP benchmark")
plt.xlabel('Time',fontsize=15)
plt.ylabel('$A_s$(t)',fontsize=15)
plt.legend(loc = 'upper right')

This plot illustrates convergence of quantum simulation with classical reference as the number of measurement shots increases.

Quantum device simulation of open quantum dynamics of a three-site spin chain comparing the quantum device simulation with the open system simulated with both Qutip and Matrix exponentiation

Summary

This example presents a flexible simulation pipeline for open quantum systems, written in a basis of Pauli strings:

Supports classical (QuTiP, matrix exponential) and quantum (density matrix) backends
Compares open vs. closed evolution
Allows benchmarking between solver strategies

The use of Lindbladian formalism and collapse operators enables modeling dissipative processes essential for realistic simulations of physical processes.
