FMO Trajectory Simulation

This documentation describes how to simulate and visualize the Fenna–Matthews–Olson (FMO) complex trajectory using the Qflux's adaptive ansatz variational method framework QMAD. The goal is to analyze excitation energy transfer within the FMO system and demonstrate time-dependent propagation of the reduced density matrix.

---

This example of open‑system dynamics is based on the stochastic Schrödinger equation (SSE). SSE simulates quantum trajectories on the same number of qubits as the system state.

Features of SSE Same qubit count as the system state (no duplication) Natural for jump/no‑jump dynamics and trajectory parallelization

---

Stochastic Schrödinger Equation

In the SSE picture, a mixed state (\(\rho(t)\)) (usually evolved by a Lindblad master equation) is represented by an ensemble of pure‑state trajectories (\(\{ |\psi_c(t)\rangle \}\)). Each trajectory obeys the stochastic differential equation

\[ \mathrm{d}|\psi_c(t)\rangle = \Big( -i H \tfrac{1}{2} \sum_k \big(L_k^\dagger L_k - \langle L_k^\dagger L_k\rangle\big) \Big) |\psi_c(t)\rangle,\mathrm{d}t - \sum_k \Big( \frac{L_k|\psi_c(t)\rangle}{\langle L_k^\dagger L_k\rangle} - |\psi_c(t)\rangle \Big), \mathrm{d}N_k , \]

where (\(\langle\cdot\rangle\)) denotes the expectation with respect to the current state. The binary increment (\(\mathrm{d}N_k\in{0,1}\)) encodes quantum jumps.

Jump probability in a small step (\(\mathrm{d}t\)):

\[ \mathrm{d}p = \sum_{k=1}^K \frac{\langle \psi(t) | L_k^\dagger L_k | \psi(t) \rangle}{\langle \psi(t) | \psi(t) \rangle}, \mathrm{d}t . \]

If a jump occurs with operator (L_i), update the (unnormalized) state

\[ \tilde{\psi}(t+\mathrm{d}t) = \frac{L_i,\tilde{\psi}(t)}{\langle \tilde{\psi}(t) | L_i^\dagger L_i | \tilde{\psi}(t) \rangle}, \]

and then normalize to obtain (\(|\psi_j(t)\rangle = \tilde{\psi}_j(t)/\langle \tilde{\psi}_j(t)|\tilde{\psi}_j(t)\rangle\)).

Ensemble reconstruction of the density matrix:

\[ \rho(t) = \frac{1}{n} \sum_{j=1}^n |\psi_j(t)\rangle\langle\psi_j(t)| , \]

with accuracy improving as (n) (the number of trajectories) increases.

Implementation Overview

We implement a variational trajectory algorithm that alternates deterministic evolution with stochastic jumps. The effective Hamiltonian is split into Hermitian and anti‑Hermitian parts, the latter capturing dissipative effects from Lindblad operators.

Effective Hamiltonian Pre‑processing

from qflux.variational_methods.qmad.effh import EffectiveHamiltonian_class, EffectiveHamiltonian

Purpose:

build (\(H_\mathrm{eff} = H_\mathrm{e} - \tfrac{i}{2}\sum_k L_k^\dagger L_k\)) and cache jump structures.

Main Trajectory Loop (Deterministic vs. Jump)

from qflux.variational_methods.qmad.solver import solve_avq_vect

# solver.py (QMAD) — core evolution sketch
while t + dt <= tspan[1]:
    He, Ha = H.He, H.Ha
    if np.exp(-Gamma) > q:              # no jump
        one_step(A, He, Ha, dt)         # deterministic update
        psi_ = A.state
        Gamma += 2 * np.real(psi_.conj().T @ Ha @ psi_) * dt
        # (optional) save intermediates
    else:                               # quantum jump
        psi_ = A.state
        weights = np.array([np.real(psi_.conj().T @ LdL @ psi_) for LdL in H.LdL])
        L = H.Llist[np.random.choice(range(len(H.Llist)), p=weights/weights.sum())]
        psi_n = L @ psi_ / np.linalg.norm(L @ psi_)
        # record jump, reset ansatz around new reference
        set_ref(A, psi_n); reset(A)
        Gamma = 0; q = rand()
    if save_state: u_list.append(A.state.copy())
    t += dt

Notes: After each jump, McLachlan‑based adaptive ansatz updates (see below) retune parameters to track the new state efficiently.

Adaptive Ansatz Updates

McLachlan’s variational principle selects parameter velocities (\(\dot{\theta}\)) to minimize the projection error (see Eqs. analogous to (\(| (\partial_t + iH)|\psi(\theta)\rangle |\)) and linear system (\(M,\dot{\theta}=V\))). We employ a pool of Pauli operators and greedily append gates that keep this McLachlan distance below a threshold, re‑optimizing after jumps.

---

Parallel Trajectories

Trajectories are independent and run trivially in parallel.

from multiprocessing import Pool

def run_trajectories(num_trajectory, H, ansatz, tf, dt):
    param_list = [(H, ansatz, tf, dt) for _ in range(num_trajectory)]
    with Pool() as pool:
        results = pool.starmap(solve_avq_trajectory, param_list)
    return results

---

FMO Complex: SSE Trajectory Simulation

Here we revisit the Fenna–Matthews–Olson (FMO) complex, but now simulate stochastic trajectories with a compact state representation. We work with NumPy arrays and pad objects to powers of two for qubit compatibility (e.g., \((5\times5\to8\times8)\)).

Model Setup (NumPy, padded)

# Hamiltonian (5×5) → pad to 8×8
H = [
    [0, 0, 0, 0, 0],
    [0, 0.0267, -0.0129, 0.000632, 0],
    [0, -0.0129, 0.0273, 0.00404, 0],
    [0, 0.000632, 0.00404, 0, 0],
    [0, 0, 0, 0, 0],
]
H_fmo = np.pad(H, ((0, 3), (0, 3)), mode='constant')

# Lindblad operators (α, β, γ) and padding
alpha, beta, gamma = 3e-3, 5e-7, 6.28e-3
Llist_f = [np.diag([0]*i + [np.sqrt(alpha)] + [0]*(4-i)) for i in range(1,4)]
Llist_f += [np.array([[np.sqrt(beta) if (i==0 and j==k) else 0 for j in range(5)] for i in range(5)])
            for k in range(1,4)]
L_tmp = np.zeros((5,5)); L_tmp[4,3] = np.sqrt(gamma); Llist_f.append(L_tmp)
Llist_f_padded = [np.pad(M, ((0,3),(0,3)), mode='constant') for M in Llist_f]

# Initial state |1> in the padded 8‑dim space
u0 = np.zeros(8, dtype=np.complex_); u0_fmo = u0.copy(); u0_fmo[1] = 1

Run Trajectories

from qflux.variational_methods.qmad.solver import solve_avq_trajectory
from qflux.variational_methods.qmad.effh   import EffectiveHamiltonian
from qflux.variational_methods.qmad.ansatz import Ansatz

if __name__ == "__main__":
    tf, dt = 450, 5
    num_trajectory = 400
    H = EffectiveHamiltonian([H_fmo], [Llist_f_padded])
    ansatz = Ansatz(u0_fmo, relrcut=1e-5)
    results = run_trajectories(num_trajectory, H, ansatz, tf, dt)

Post‑processing & Populations

Compute average populations of selected basis states and compare against QuTiP reference results.

# Diagonal projectors for populations in the padded basis
Mexp_f = [
    np.diag([0,1,0,0,0,0,0,0]),
    np.diag([0,0,1,0,0,0,0,0]),
    np.diag([0,0,0,1,0,0,0,0]),
    np.diag([1,0,0,0,0,0,0,0]),
    np.diag([0,0,0,0,1,0,0,0]),
]

avg = [None]*len(Mexp_f)
for j in range(num_trajectory):
    for k, M in enumerate(Mexp_f):
        ev = []
        for psi in results[j].psi:                      # trajectory states
            rho = np.outer(psi, psi.conj())
            ev.append(np.trace(rho @ M).real)           # population
        avg[k] = np.array(ev) if avg[k] is None else (avg[k] + np.array(ev))

avg = [a/num_trajectory for a in avg]
# time in results[0].t

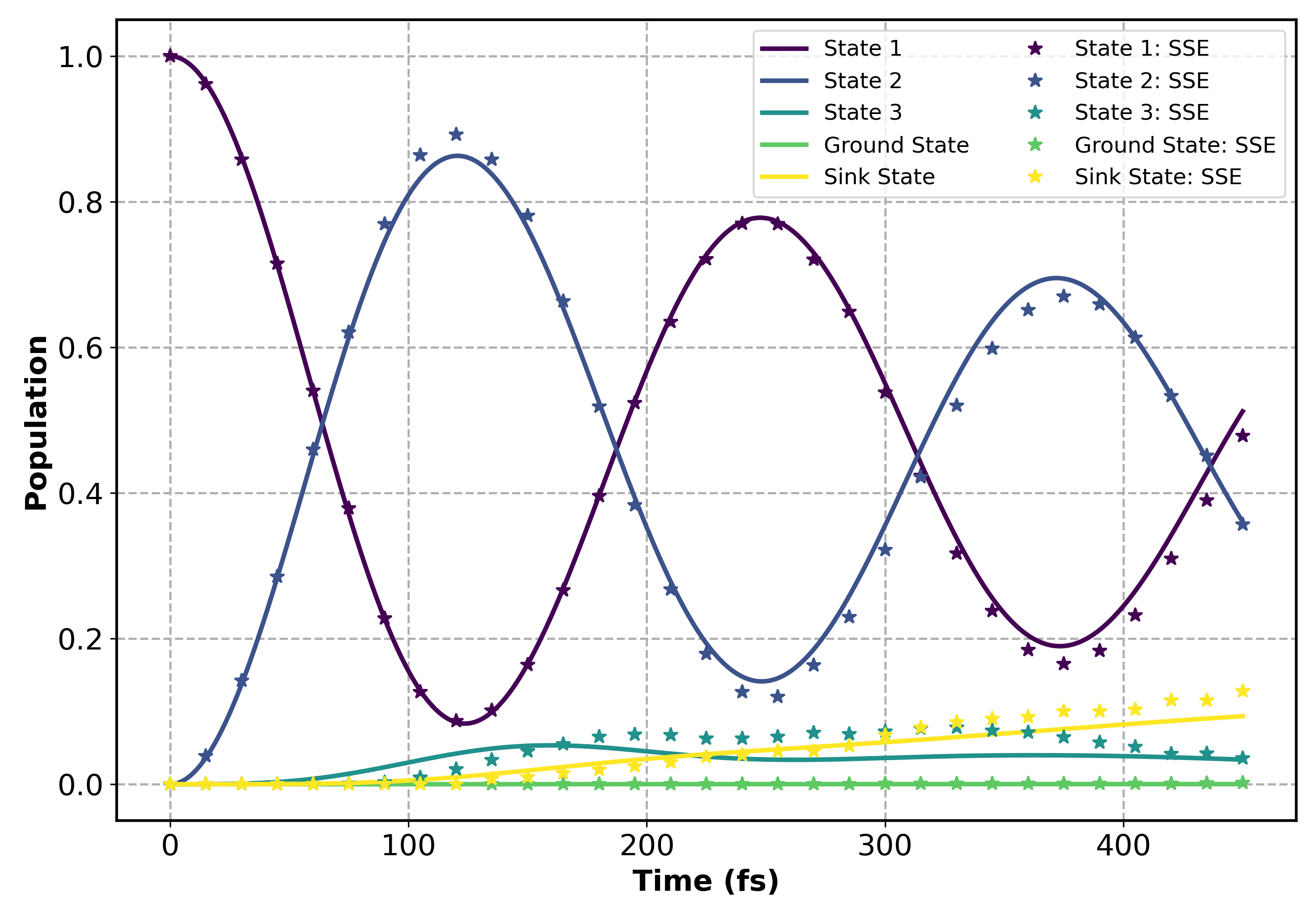

Observation: With suitable (\(\Delta t\)), trajectory count, ansatz pool, and McLachlan threshold, SSE trajectories closely track QuTiP’s numerically exact curves.

---

Adaptive Updates After Jumps (Brief)

After each detected jump, we

1. reset the ansatz reference to the post‑jump state,
2. re‑select operators from the pool, and
3. re‑tune parameters via the McLachlan linear system. This keeps the variational circuit compact while maintaining accuracy under noise.

---

Summary

• SSE avoids qubit doubling and non‑local Liouvillians, ideal for NISQ implementations.
• We decomposed an effective Hamiltonian, evolved quantum trajectories with deterministic and jump segments, and averaged to reconstruct (\(\rho(t)\)).
• On the FMO complex, SSE trajectories reproduce population dynamics in strong agreement with QuTiP baselines.

---

References & Links

• Y. Chen et al., Adaptive variational quantum dynamics for open systems (2024).

• Shivpuje et al., Designing Variational Ansatz for Quantum-Enabled Simulation of Non-Unitary Dynamical Evolution — An Excursion into Dicke Superradiance, Adv. Quantum Technol. (2024), https://doi.org/10.1002/qute.202400088

• Code: QMAD repository: qmad/solver.py, qmad/effh.py, example notebooks: examples/trajectory_FMO*.ipynb.
